Lionscope

Lionscope is a lightweight Android profiler and Layout Inspector in your browser, and your AI agent can use it too. No Android Studio needed: run npx lionscope@latest, pick a device and an app.

• Profile: CPU, memory, frame rendering, main-thread stalls, layout inflation and logcat for one app, on a single shared time axis. With the SDK, each stall names the line that blocked and where its work came from (an RxJava chain and the line that subscribed it, a coroutine, a posted Runnable, a click).
• Inspect: freeze the screen, click a view, and see its attributes; with the SDK, also the XML layout and line it came from and the Fragment that owns it, the composables of Compose screens with the Kotlin line that calls them, and live edits of a View's properties (padding, size, colors with a picker, text…) on the running app.
• Network: with the SDK's OkHttp interceptor, see the app's HTTP requests (headers, bodies, timings) on the same time axis, and mock responses or failures from the dashboard.
• Operate: see and control emulators (which it can also boot headless) and USB devices right next to the charts, and move them to another location on a map.
• AI agents: the same data as tools over MCP or a CLI (Claude Code, Cursor, VS Code, Codex, …). Select a view in the Inspector and ask your agent about "this element".

It stays light. Measured with the sample app on an emulator, the server uses under 1% of one CPU core while the app is idle and about 4% while it scrolls, with 100–150 MB of memory. The SDK adds about 0.5% CPU in the app.

It works in two modes:

• ADB-only (no app changes): everything is collected through adb shell (/proc, dumpsys, logcat).
• With the optional SDK in the app's debug build: adds which screen is on top (Activity, Fragment, DialogFragment), per-frame FrameMetrics with a stage-by-stage breakdown, grouped per screen, and main-thread stalls with the app code line that caused them and where their work came from (plus opt-in StrictMode violations), layout inflation timing, the Layout Inspector's own view tree with layout sources and owners, the composables of Compose screens, live edits of Views, and (with one line in your OkHttpClient) the app's HTTP traffic and mock responses.

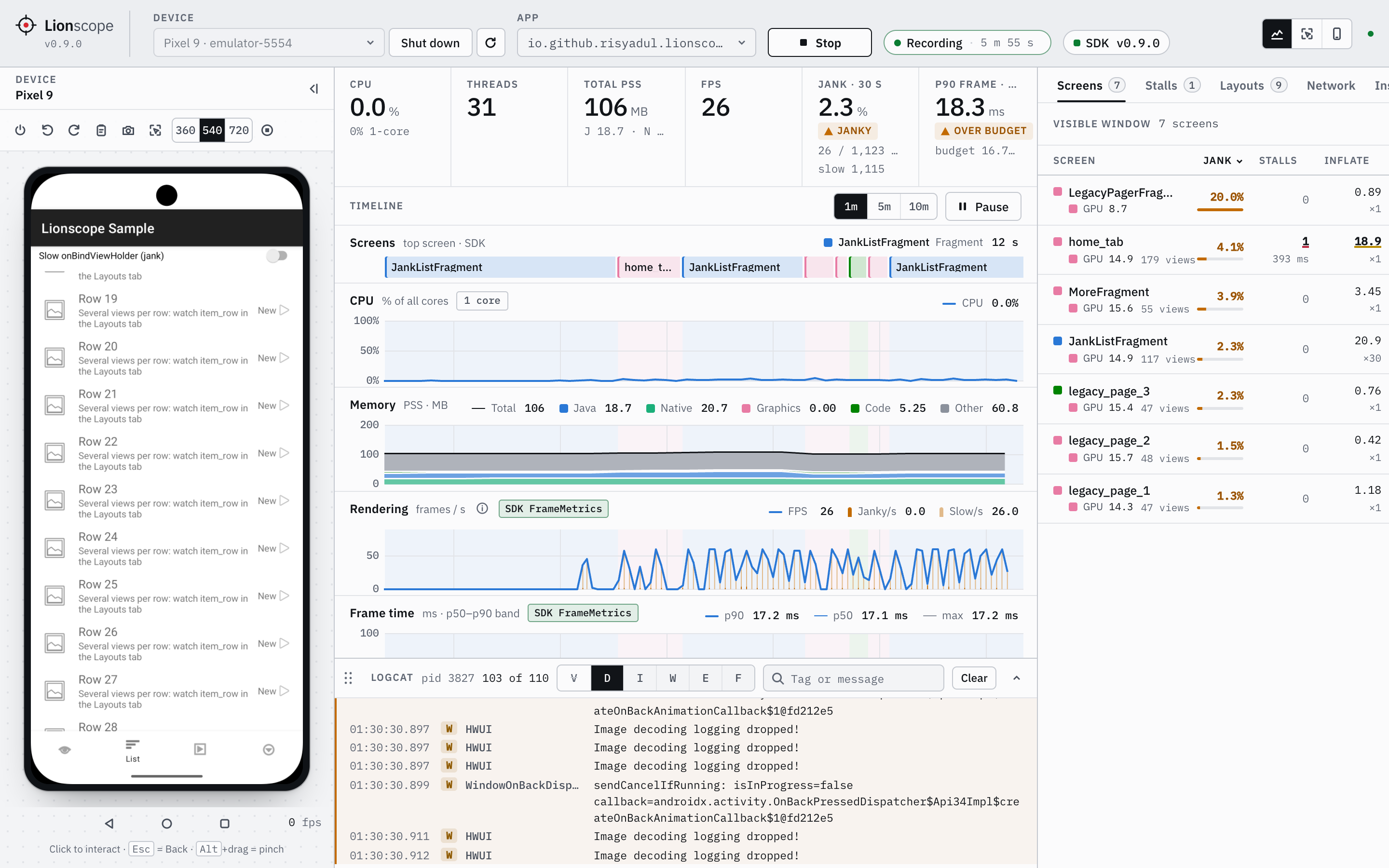

_{The bundled sample app on a headless emulator, operated from the Device column: screen bands across all charts, SDK FrameMetrics in the Rendering lane, logcat below the timeline, and the Screens tab ranking the screens by jank.}

What the dashboard shows

The dashboard is a single page: a top bar to pick the device and the app and to start or stop a session; the emulator's screen on the left; stacked timeline charts in the middle that share one time axis (last 1, 5 or 10 minutes) and can be paused, with the app's logcat in a drawer below them (drag its bar to resize it, double-click the bar to maximise it; click, shift-click or Cmd/Ctrl-click lines and press Cmd/Ctrl+C to copy them); and, with the SDK, the Screens, Stalls, Layouts and Network tabs on the right. Below 1280 px the screen opens as a drawer from the top bar (in the Profiler view; the other two keep it on the page).

The switch at the right of the top bar picks what the page is for:

• Profiler (the default): everything above.
• Inspector: only the device and the Layout Inspector, which gets the room to show its tree and the attributes side by side.
• Device: only the device screen, larger, with how to let an AI agent operate it (s
