flstudio-mcp

Control FL Studio with Claude: AI mixing, composition, and mix diagnosis through natural language.

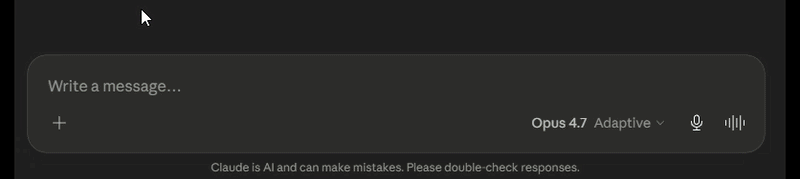

Claude diagnosing and fixing a mix in FL Studio through natural language.

Overview

flstudio-mcp is a Model Context Protocol (MCP) server that lets Claude Desktop drive FL Studio 2025 directly — the mixer, plugins, piano roll, routing, and project — from plain-language requests. Ask for a mix diagnosis, a vocal chain, a chord progression in a particular scale, or a full arrangement, and Claude carries it out through FL's scripting API and a set of calibrated, safety-checked tools.

It is genre- and producer-agnostic: nothing about it assumes a particular style of music.

Quickstart

scripts\install_windows.bat        :: controller + server + note bridge
fl-studio-mcp-daemon               :: start the bridge, keep it running

Wire the two loopMIDI ports in FL (Options > MIDI Settings), arm MCP_Apply once in the piano roll, then ask Claude in plain language:

"Scan my mix and tell me what's wrong." — "Set up a vocal chain from my plugins." — "Export this arrangement to MIDI."

Full setup is below.

Capabilities

Mixing & diagnosis

• Mix Doctor — scans the whole mix and reports concrete problems (clipping, low headroom, level imbalance, missing high-pass, ungrouped related tracks, overlapping EQ boosts), each with the exact evidence and a proposed fix. Fixes are applied one at a time, only on approval, through a snapshot → write → readback → rollback safety layer. Master clipping is resolved by trimming the contributing source tracks rather than pulling the master.
• Full-song peak watch — holds a running peak per track across playback, so level decisions are based on the loudest moment of the actual song, not a single instant.
• Calibrated processing intents — musical EQ, compression, reverb, and delay moves mapped to real plugin parameters (native and third-party), each applied as one reversible change.
• Level-aware compression — sets thresholds relative to a track's measured level during playback.
• Gain staging — proposes per-track trims toward a healthy level with proper master headroom.
• Reference match — compares your mix's level and tonal balance against a reference track.
• Bulk track control — solo or mute a whole group (drums, vocals, …) in one step, with a one-call reset.
• Track & channel coloring — color a track, a channel, or a whole group (drums, vocals, …) by color name or hex, reversible like every other change.

Plugin & preset control

• Read and set plugin parameters by name, on native and third-party plugins (the parameter list is resolved live).
• Chain suggestions and preset recommendations drawn from your actual installed library — read directly from FL's plugin database and preset folders on disk, so recommendations are limited to what you own.

Composition

• Multi-track MIDI export — generate a complete arrangement as a standard MIDI file to import.
• Multi-pattern arrangement — create, name, clone, and mark sections.
• Note and chord writing into the piano roll, with quantize to a grid (for new notes and existing ones).
• Composition in any scale or mode — Western modes, pentatonic, ragas, maqam, and beyond — through the scale composer, where Claude supplies the notes for the requested scale.

Audio analysis

• Tempo and key estimation from an audio file.
• Melody-to-MIDI transcription (CREPE pitch tracking, with a lighter fallback).

The server exposes 67 t
