Revit MCP Server

AI chat for Autodesk Revit that lives inside Revit. No Claude Desktop. No external apps. Just a native chat panel, a WebSocket server, and 53+ tools that talk directly to the Revit API.

Author: Sanjay Chauhan | GitHub

A native WPF chat panel docked inside Revit. The plugin and MCP server communicate over WebSocket on localhost — the AI sees your active view, selection, and model context in real time. No middleman.

Supports multiple AI providers out of the box: OpenRouter (100+ models), Anthropic Claude, DeepSeek, and Qwen. Switch providers by changing one line in your .env file. Run Qwen locally through Ollama for free.

53 specialized tools cover query, selection, visibility, views, sheets, MEP, tagging, and export. 5 additional dynamic intent tools (query, execute, analyze, navigate, create) work across any Revit category — so "query Walls", "query Conduit", "query Electrical Fixtures" all work without needing a separate hardcoded tool for each.

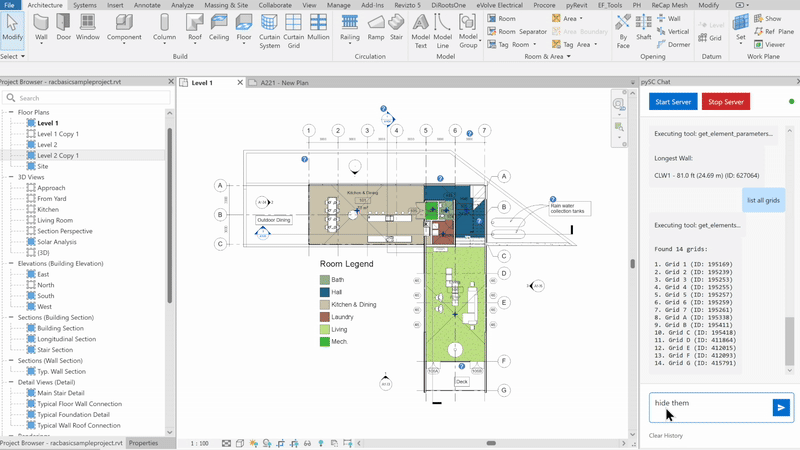

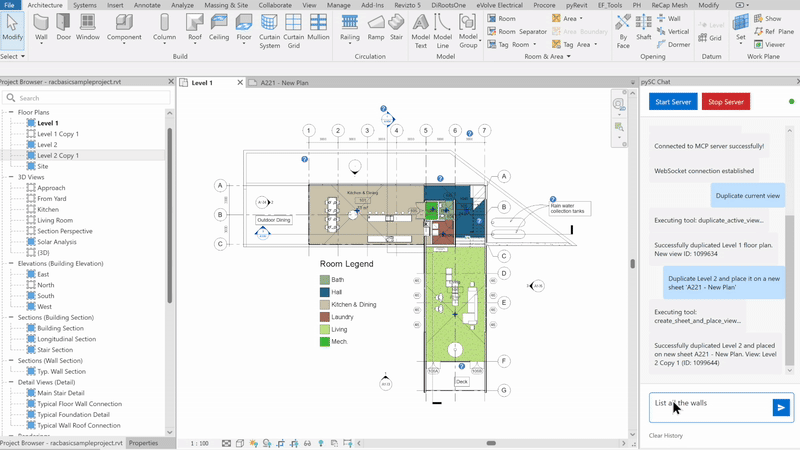

Demo

Features

Query & Analysis (10 tools)

• get_elements - Query any category with pagination
• get_element_parameters - Get Length, Area, Volume, Mark, Comments
• calculate_quantities - One-stop quantity takeoffs
• find_elements_by_parameter - Complex AND/OR filtering with operators
• export_schedule_data - Export schedules to CSV
• count_elements_by_family / count_elements_by_type / count_views_by_type
• get_element_room - Get containing room or MEP space
• get_project_info - Project metadata

Selection (8 tools)

• select_all_by_category - Select all elements of a category
• select_elements_by_level - Select by level
• select_similar_by_category / select_similar_by_family / select_similar_by_type
• select_and_hide_category - Compound select + hide
• select_and_isolate_category - Compound select + isolate

Visibility & Isolation (6 tools)

• hide_elements_by_category / unhide_elements_by_category
• hide_selected_elements / unhide_all_in_view
• isolate_elements_by_category / isolate_selected_elements

View Management (6 tools)

• duplicate_active_view / duplicate_view_by_name / duplicate_views
• create_dependent_views - Create N dependent views from parent
• get_view_info / list_all_views

Sheet Management (6 tools)

• create_new_sheet - Create sheet with number and name
• place_view_on_sheet - Place viewport at coordinates
• get_sheet_info / get_all_sheets_info
• duplicate_and_place_view - Atomic duplicate + place
• create_sheet_and_place_view - Atomic sheet creation + view placement

MEP & Electrical (8 tools)

• get_panel_schedules - All electrical panels with metadata
• create_panel_schedule - Create panel schedule view
• perform_conduit_run_qa - Full QA workflow with color coding
• calculate_conduit_bend_total - Bend angles for conduit runs
• get_total_conduit_length - Sum all conduit in model
• get_conduit_length_by_size - Length breakdown by conduit diameter
• get_total_wall_length - Wall length calculations
• get_element_room - Room/space containment

Grid & Level Tools (3 tools)

• copy_grid_state - Copy visibility states to storage
• paste_grid_state - Apply saved state to current view
• rename_element - Rename views, levels, or sheets

Annotation & Drafting (4 tools)

• find_and_tag_elements - Find and tag in one operation
• batch_create_tags - Tag multiple elements
• delete_empty_tags - Remove tags with no content
• `find_d
