VisionMCP

A standalone MCP server that provides on-device Vision Framework access for PDF and image text extraction. Uses Apple's Vision OCR exclusively -- no cloud services, no API keys, no data leaves your machine.

Built with Swift 6.3, macOS 26, and the MCP Swift SDK.

How it works

Two independent parsers, each producing structured PageExtraction results:

• PDF ingestion -- renders PDF pages to images via PDFKit, then runs RecognizeDocumentsRequest (macOS 26 Vision API) for structured document OCR. Extracts text, tables, lists, and paragraphs.
• Image ingestion -- loads images via CGImageSource, then runs VNRecognizeTextRequest for text OCR. Supports PNG, JPEG, TIFF, BMP, GIF, HEIC, and WebP.

Both paths produce extracted text, confidence scores, and automatic text chunking with configurable overlap. The server is read-only -- it extracts and returns data with no persistence or database.

Requirements

• macOS 26 (Tahoe) or later
• Xcode 26 beta or later
• Swift 6.3 or later

Build

git clone https://codeberg.org/<your-user>/VisionMCP.git
cd VisionMCP
swift build -c release

The release binary is at .build/release/VisionMCP.

Install

sudo ln -sf $(pwd)/.build/release/VisionMCP /usr/local/bin/visionmcp

Verify:

visionmcp --version

MCP Configuration

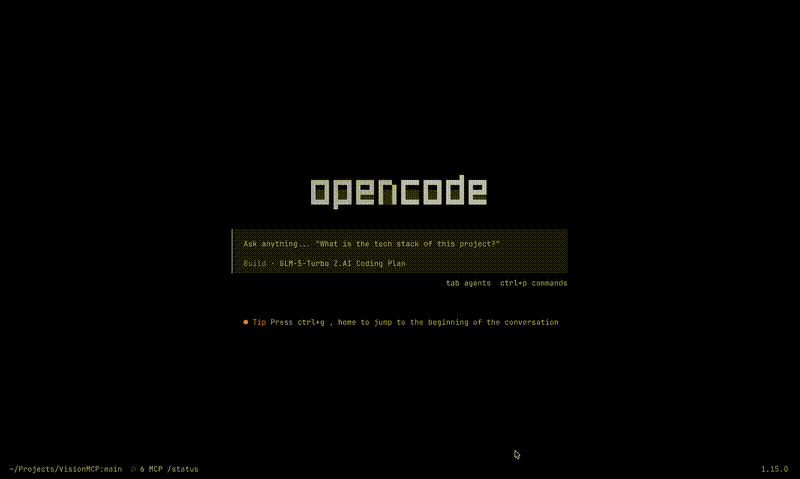

opencode

Add to your project's opencode.json:

{
  "mcp": {
    "visionmcp": {
      "type": "local",
      "command": ["/usr/local/bin/visionmcp"],
      "enabled": true
    }
  }
}

Or add to your global ~/.config/opencode/opencode.json to make it available across all projects.

Tools

ingest_pdf

Extracts text from a PDF document using Vision OCR. Returns extracted text, chunks, and metadata.

Parameters:

Returns:

• raw_text -- full extracted text
• chunks -- text split into token-limited chunks with overlap
• pages -- per-page extraction with text, confidence, tables, lists, paragraphs
• file_hash -- SHA-256 hash of the file
• page_count, chunk_count, status

ingest_image

Extracts text from an image file using Vision OCR. Returns extracted text and metadata.

Parameters:

Supports: PNG, JPEG, TIFF, BMP, GIF, HEIC, WebP. Max file size: 250 MB.

Returns: Same structure as ingest_pdf.

Example response

{
  "file_name": "invoice-001.jpeg",
  "page_count": 1,
  "chunk_count": 2,
  "file_hash": "a258e31c...",
  "raw_text": "Invoice text here...",
  "chunks": "[{\"chunk_index\":0,\"content\":\"...\",\"token_count\":558}]",
  "pages": "[{\"page_number\":1,\"text\":\"...\",\"confidence\":0.97}]",
  "status": "extracted"
}

Architecture

VisionMCP
├── PDFParser              # Renders pages, runs RecognizeDocumentsRequest
├── PDFDocumentActor       # Thread-safe PDFDocument wrapper (Sendable)
├── ImageParser            # Loads images, runs VNRecognizeTextRequest
├── TextChunker            # Splits text into overlapping token-limited chunks
├── IngestService          # Orchestrates parsing + chunking
├── IngestTools            # MCP tool definitions + handlers
├── ToolRegistry           # Wires MCP server to tools
└── main.swift             # Entry point, stdio transport

No shared protocol, no factory, no reconciliation. Each tool routes directly to its parser.

Development

Build

swift build

Test

swift test

Tests use Swift Testing (import Testing, @Test, #expect).

Run locally

swift run VisionMCP
